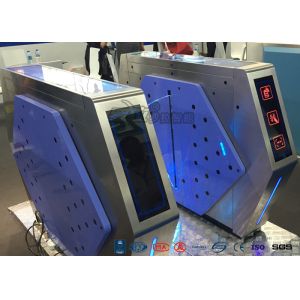

Access Control Automatic Flap Barrier Gate Walk Through Optical Turnstile
Introduce of the flap barrier gates
Technical parameters of flap barrier gates
| Model | RNCF H6088 |
| Flap length | 245mm |
| Lane width | 550mm |
| Cabinet material | Cold rolled steel & aluminum alloy |
| Material of Flap Door | Acrylic plate |
| Housing of thickness | 2.0mm |
| Normal Life Span | 3 millions times |
| Communication Interface | Standard RS485 |
| Transit speed | 30-40 persons/min |
| Time for opening or closing | 0.5s |
| Starting time after power on | 3s |
| Input interface | Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
| Transit speed | 25~32 persons/min |
| Working temperature | -10°C~50°C |
| Working environment | Indoor / Outdoor (Shelter) |
| Relative humidity | ≤95%, no condensation |
Functions of flap barrier gates
1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4.Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7.uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors).
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control.
11 Unit can be controlled and administered by remote control.
Extensible functions:
1. LED counter display
2. Casing and gate size can be lengthened
3.Lgic judgment by photocells (7pair or 9 pairs)
4.Speech reminder
5.normal close or normal open adjustable
6. Light, sound alarm
